PHANTAS: All in One
Commercial Robot Floor Cleaner for Small to Midsize Spaces
Compact, but Comprehensive. All in One, One for All.
Phantas is a commercial floor cleaning robot that boldly integrates 4 floor cleaning modes (Vacuuming, Sweeping, Scrubbing and Dust Mopping), which grants it unrivaled versatility and usability for cleaning spaces with different types of flooring, both hard and soft.
Overview:

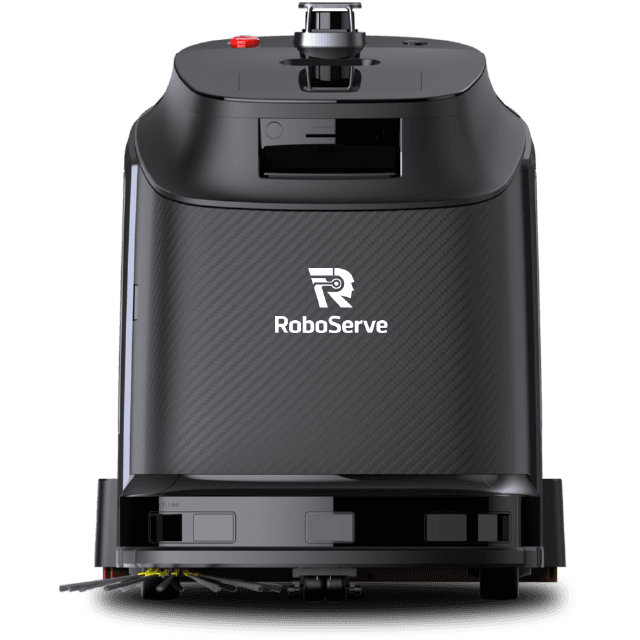

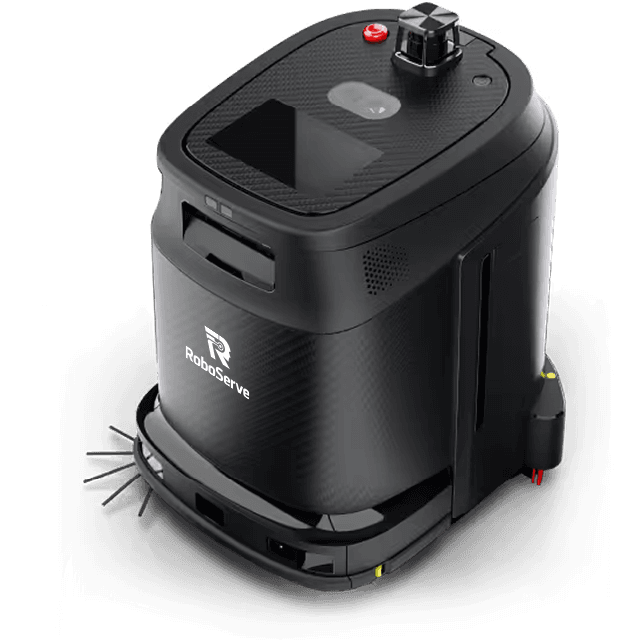

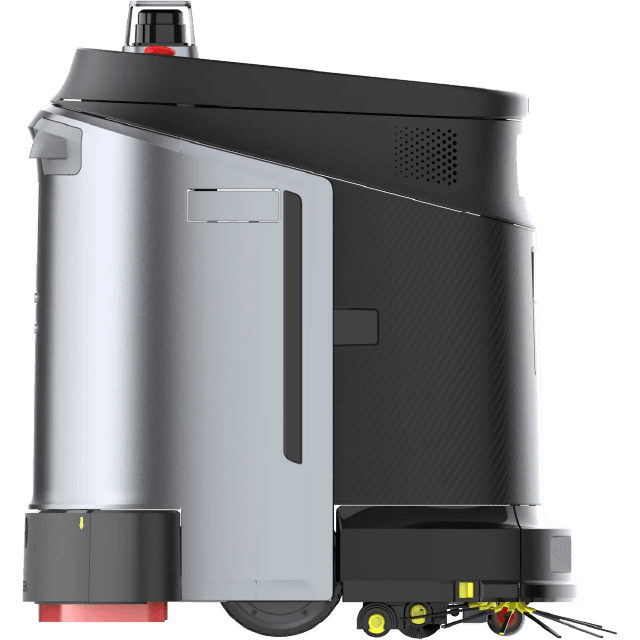

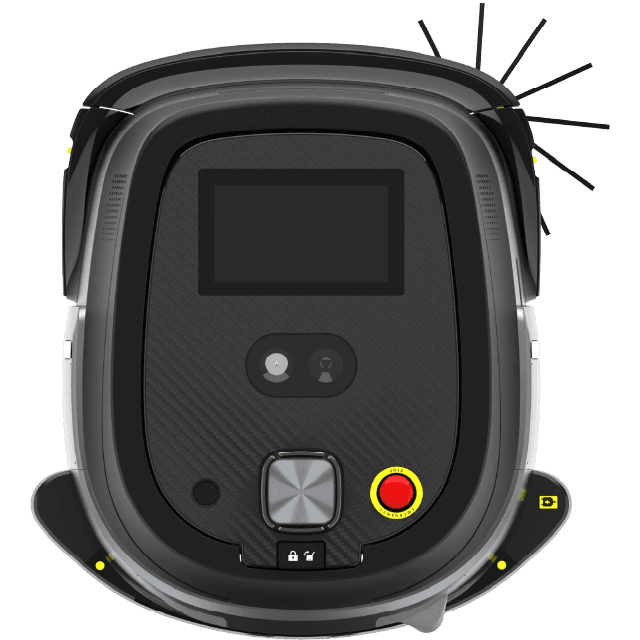

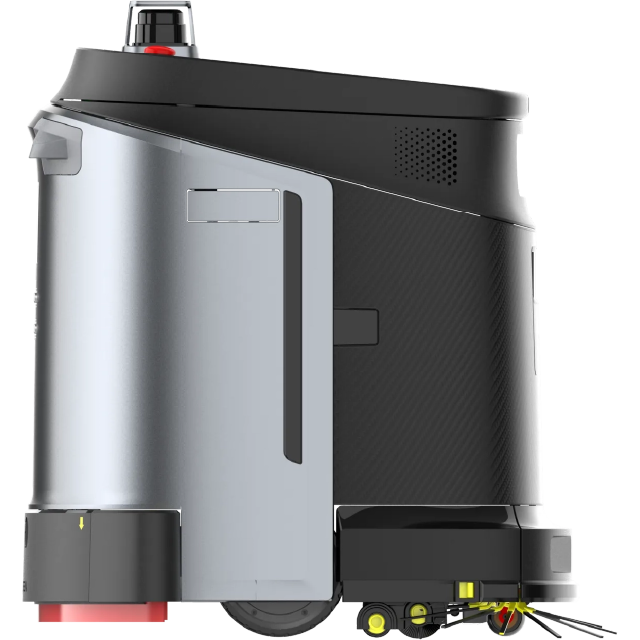

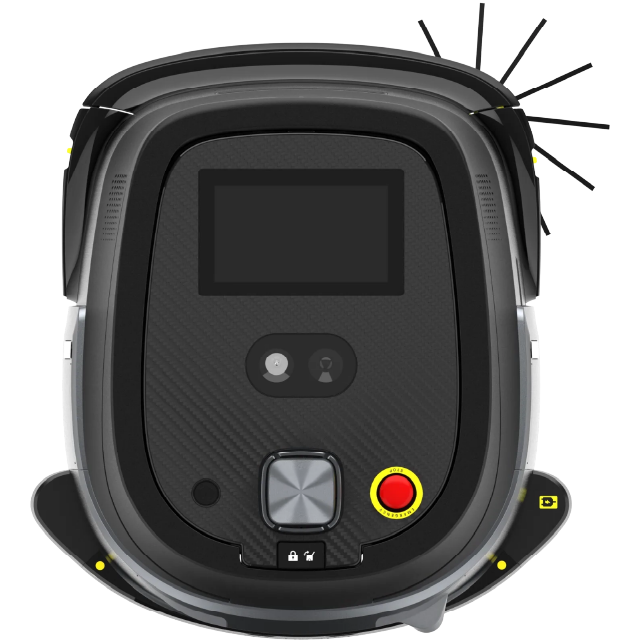

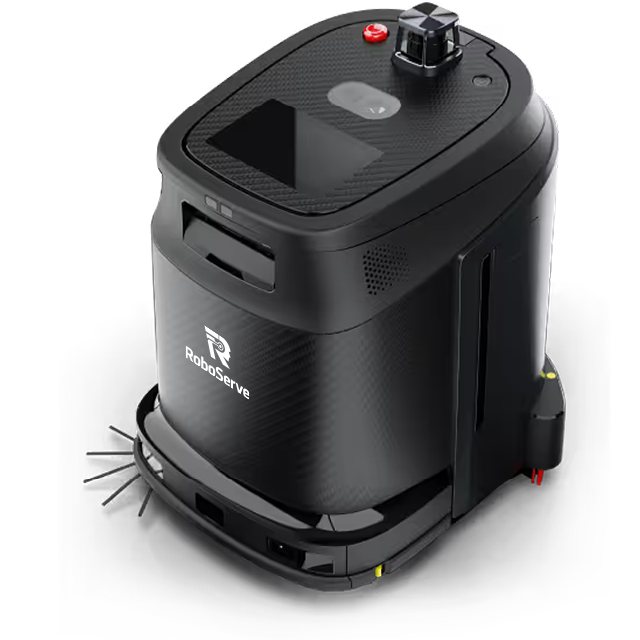

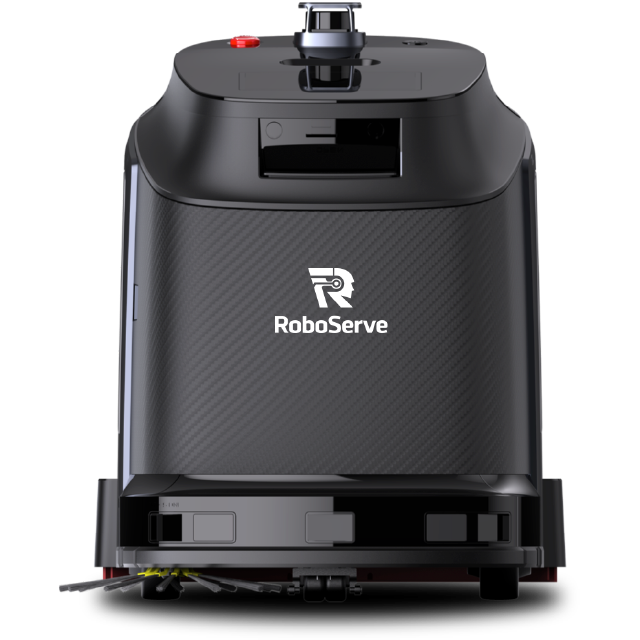

Gallery
Functions
Sweep
Vacuum
Scrub
Mop
Features

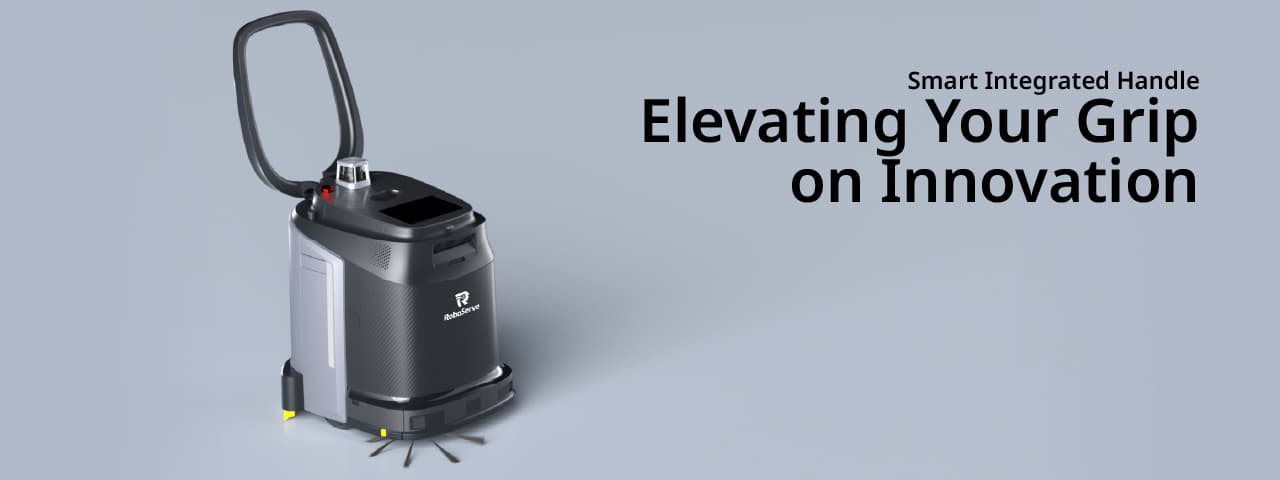

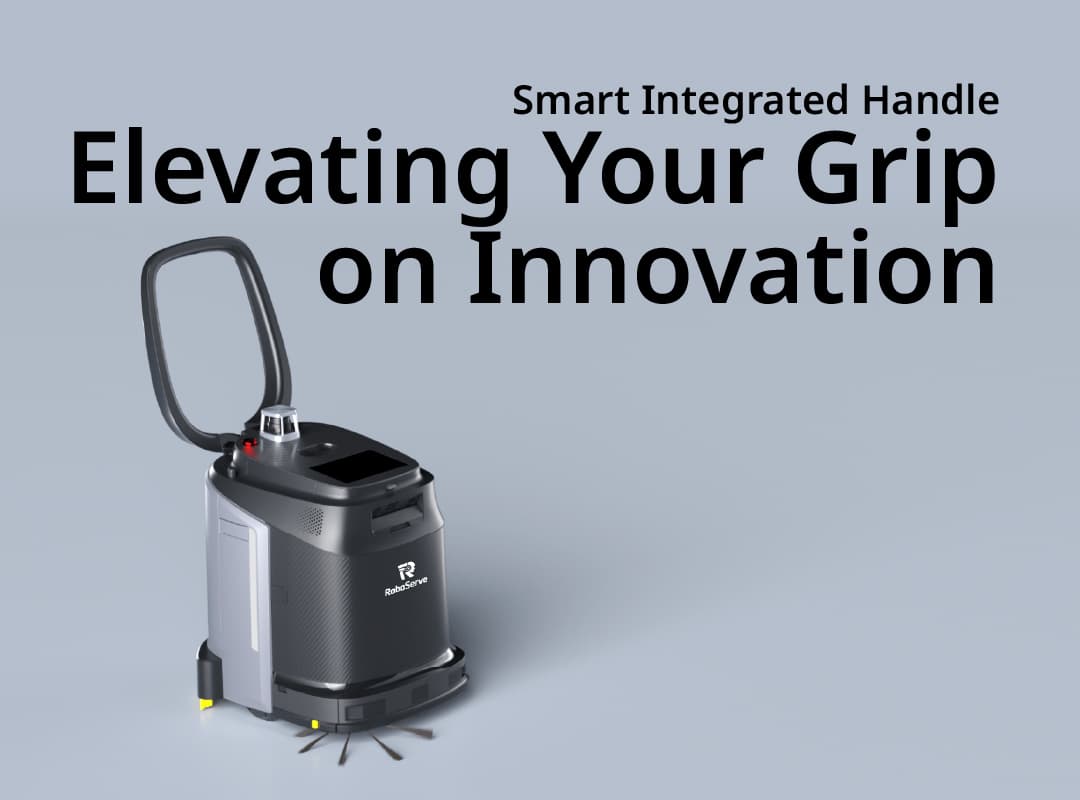

Smart Integrated Handle
Phantas introduces an integrated handle enabling seamless switch between Auto and Manual modes via position detection. Its ergonomic design, aided by power assistance, makes transport effortless, while intuitive hard buttons ensure smooth operation. Built for durability, the handle withstands up to 1000N and 10,000 cycles. Added smart voice guidance elevates convenience, blending innovation with ease.

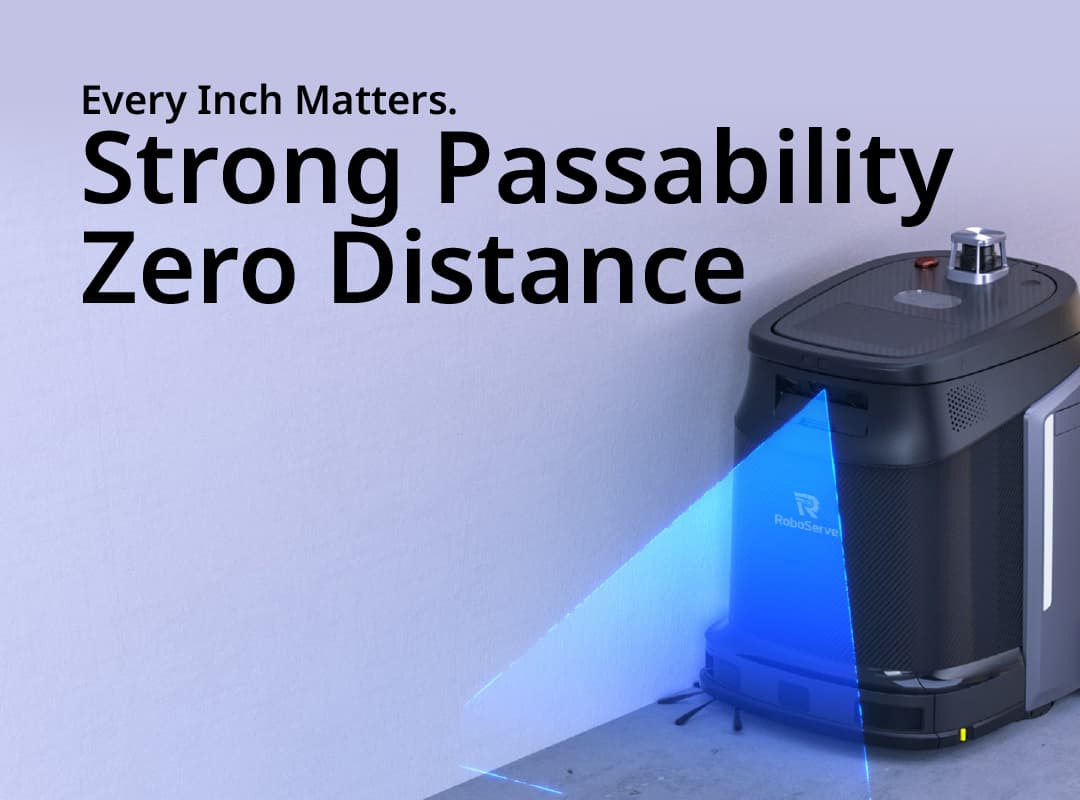

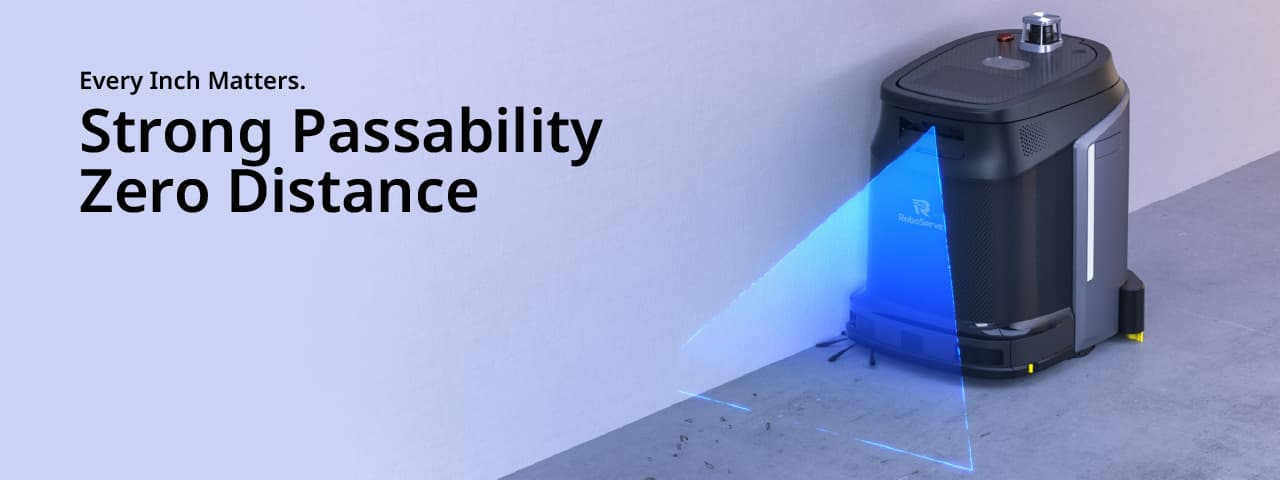

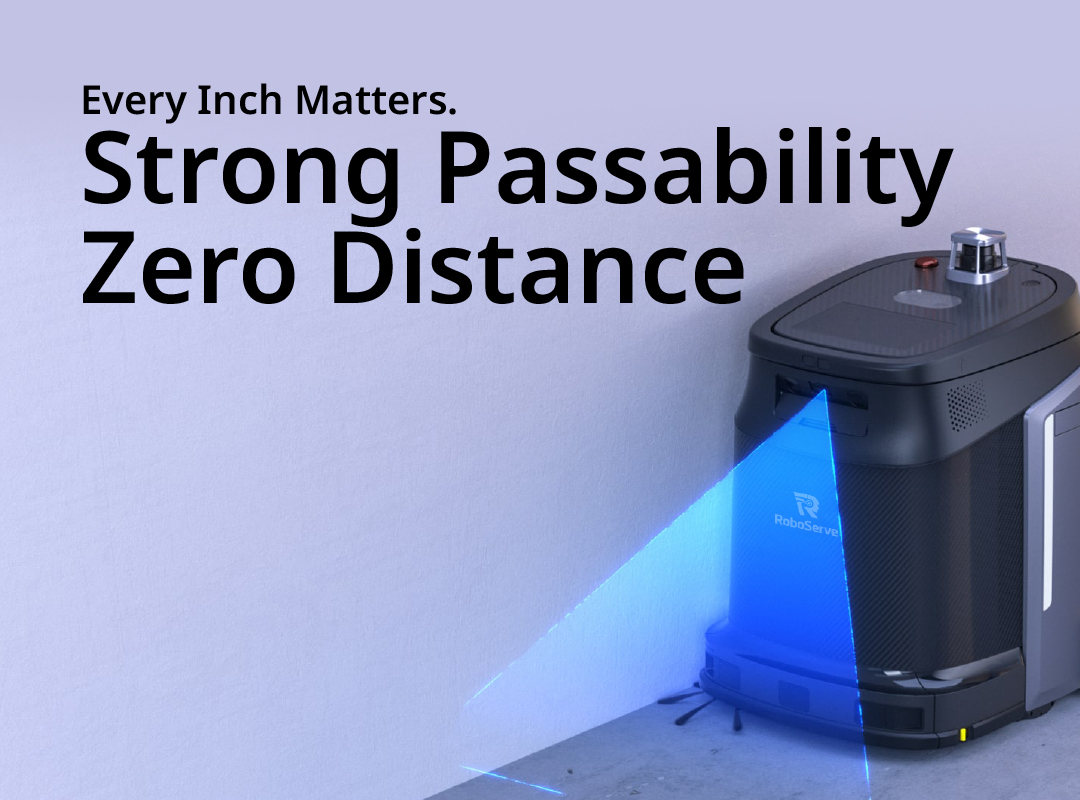

Every Inch Matters.
Phantas, the industry's smallest commercial floor cleaning robot, easily navigates narrow aisles and under-table areas. With side brushes and high-precision sensors, it cleans edges at 0 cm distance, ensuring powerful coverage even in tight spaces. Its compact design and edge-cleaning capability guarantee maximum efficiency — every inch of your floor is cared for by Phantas.
AI-Powered, Learning while Cleaning.
Phantas simplifies mapping with easy app-based creation and editing, eliminating the need for professionals or external tools. In dynamic environments, it localizes and updates maps in real time, while multi-sensor fusion provides rich 3D perception of surroundings. Flexible path planning lets you customize cleaning with modes like zigzag or square spiral, ensuring efficient coverage tailored to your space.

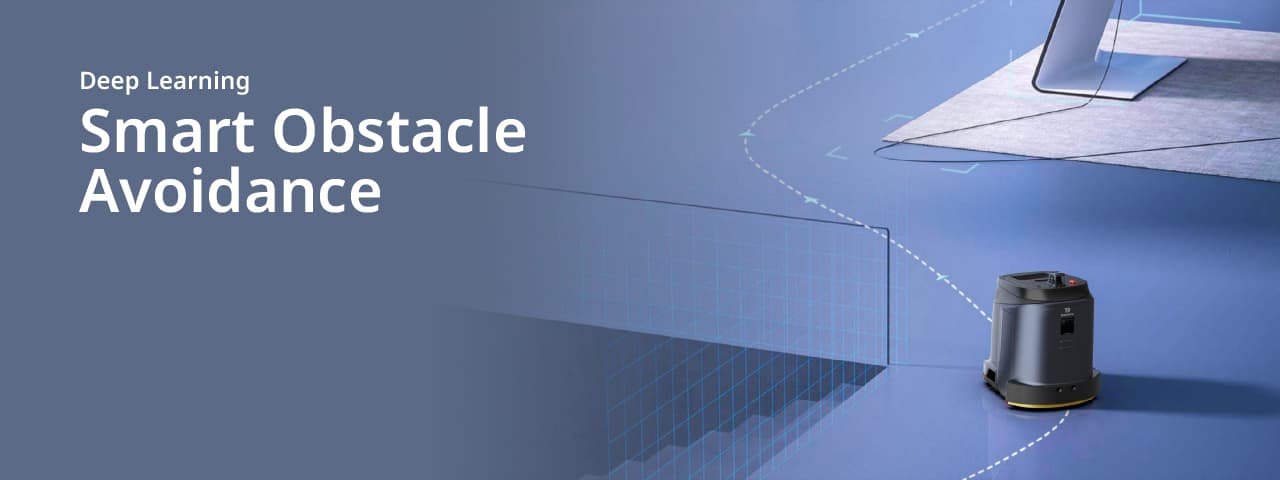

Deep Learning, Smart Obstacle Avoidance
Phantas detects static and dynamic obstacles from all directions and autonomously avoids them in real time, creating collision-free paths. Unlike typical commercial robots, it uses deep-learning algorithms trained on millions of real-world images, giving it strong recognition and decision-making. It adapts behavior to obstacle types, for example bypassing electric wires instead of crossing them directly.

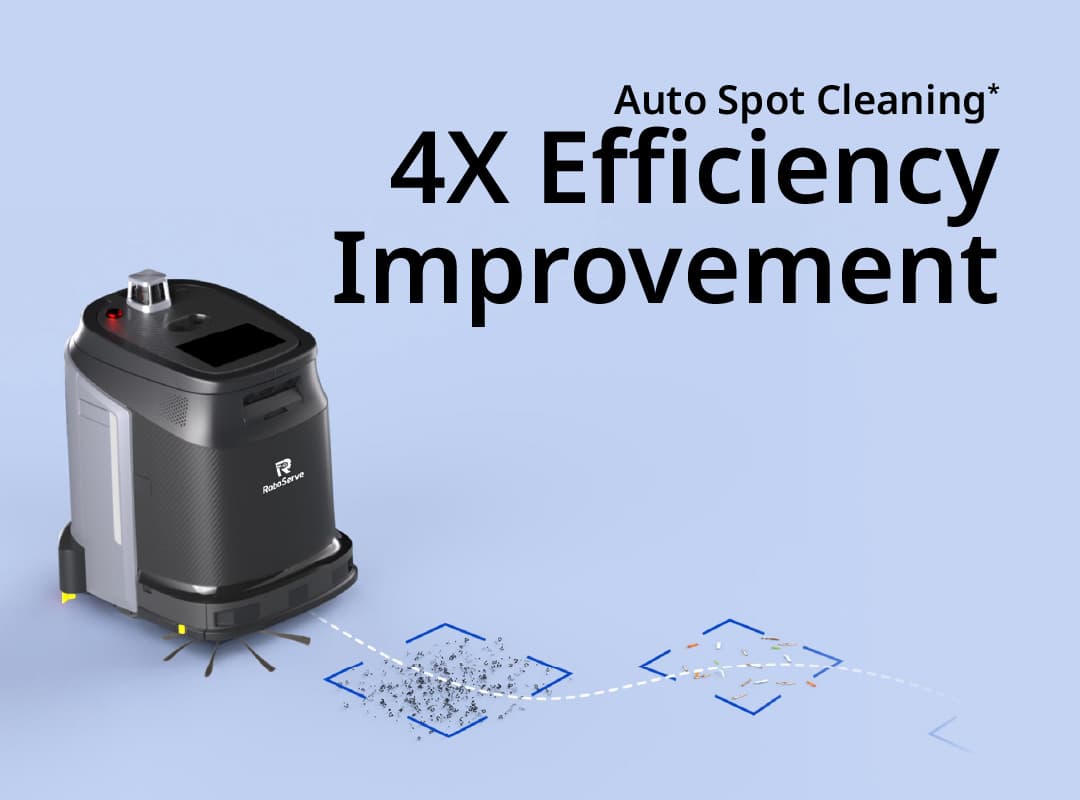

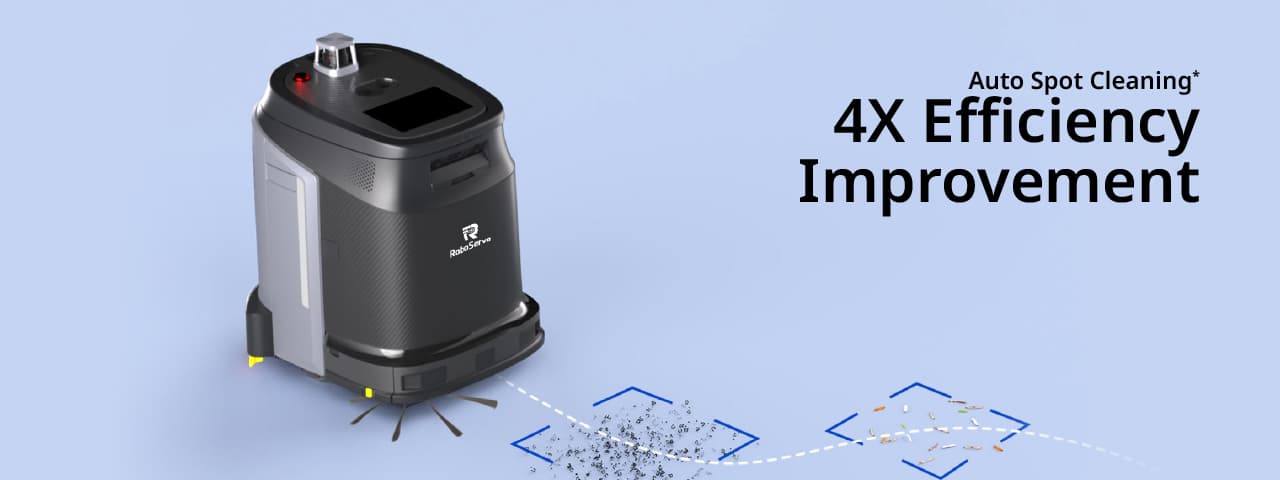

Auto Spot Cleaning — 4× Efficiency Improvement
Phantas integrates RoboServe's Auto Spot Cleaning into its path planning, scanning floor cleanliness, and performing spot cleaning where waste is detected. If debris is too large, it alerts operators via the app. By cleaning only where needed, Phantas boosts efficiency up to 400% while greatly reducing water, energy, and chemical use, delivering smarter, more sustainable performance.

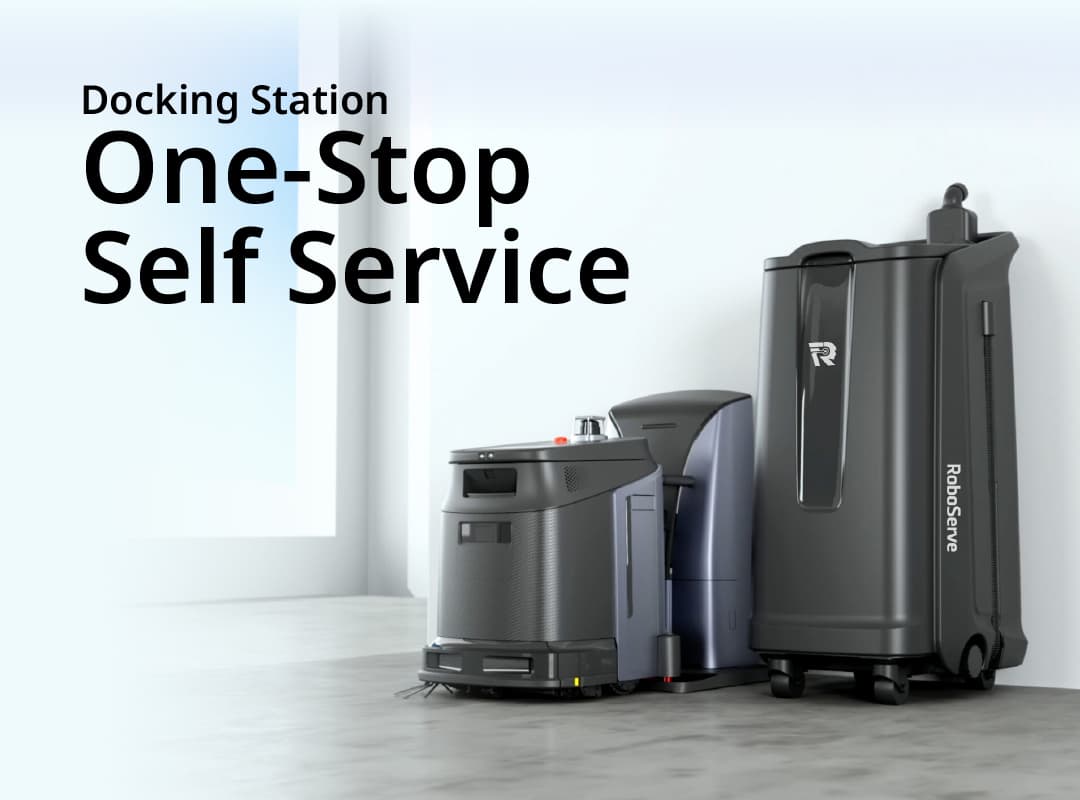

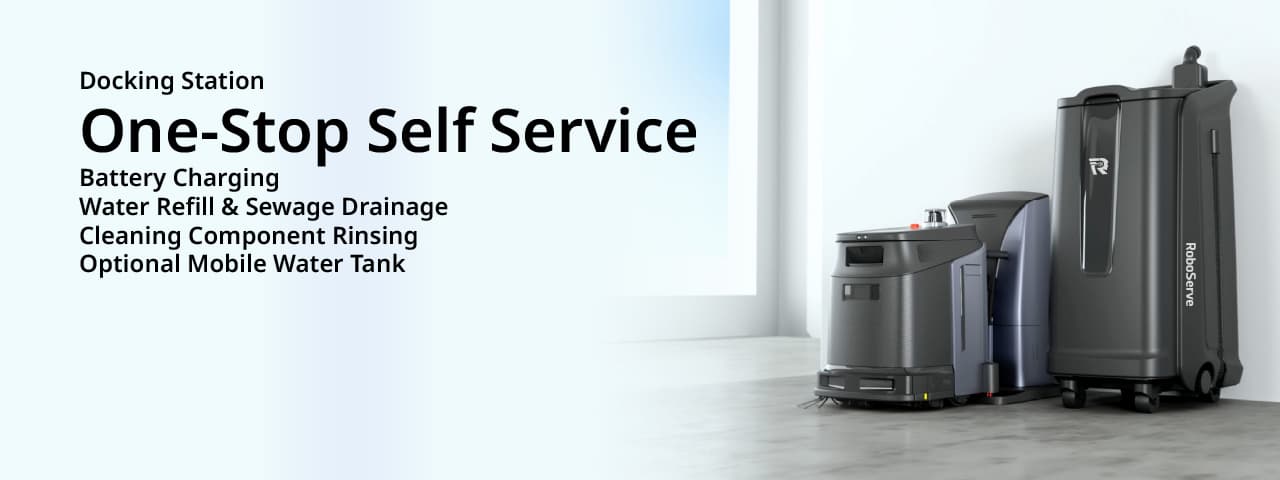

Docking Station, One-Stop Self Service
Phantas offers enhanced efficiency with an optional workstation for automatic charging and water management. The workstation is compatible with a mobile water tank for on-demand water supply. These features ensure uninterrupted performance and adapt to diverse cleaning needs.
Applicable Flooring Types
Ceramic Tiles
Natural Stone
Low Pile Carpet
PVC & Vinyl
Hardwood
Epoxy
Concrete
Specification
- •4-in-1 Cleaning Modes: Vacuuming, Sweeping, Scrubbing, and Dust Mopping in a single compact machine
- •Industry's smallest commercial floor cleaning robot — navigates narrow aisles and under-table areas
- •Edge cleaning at 0 mm distance with side brushes and high-precision sensors
- •Smart Integrated Handle with auto/manual mode switching and power-assisted transport
- •Deep-learning obstacle avoidance trained on millions of real-world images
- •Auto Spot Cleaning boosts efficiency up to 4× by cleaning only where needed
- •Real-time map localization and updates in dynamic environments via multi-sensor fusion
- •Optional docking station for automatic charging and water management
- •Handles up to 1000N force and 10,000 duty cycles for long-term durability
- •Automatic return to charging station when battery is low
| PHANTAS | |
|---|---|
| Dimension (L × W × H) | 540 × 440 × 617 mm |
| Net Weight | 53 kg |
| Vacuuming/Sweeping Width | 410 mm |
| Scrubbing/Dust Mopping Width | 330 mm |
| Max. Cleaning Efficiency | Scrubbing: 950 m²/h; Vacuuming: 1,180 m²/h |
| Practical Cleaning Efficiency | 350–700 m²/h |
| Clean Water / Wastewater Tank | 11.5 L / 10.5 L |
| Dust Bag Capacity | 6 L (holds 3–7 days' dust) |
| Trash Can | 0.7 L |
| Gradeability | 8° |
| Min. Passable Width | 600 mm (550 mm*) |
| Min. Passable Height | 650 mm |
| Min. Turn-around Width | 750 mm |
| Min. Height of Detected Obstacles | 20 mm |
| Edge Cleaning Capability | 0 mm |
| Max. Runtime | Scrubbing 4.5 h, Vacuuming 4 h, Sweeping 14 h, Dust Mopping 10 h |
| Charging Time | ≈2 h |
| Noise Level | < 65 dB |
| Sensors | 2D LiDAR, 3D Depth Cameras, RGB Camera, Anti-drop, Anti-collision |
